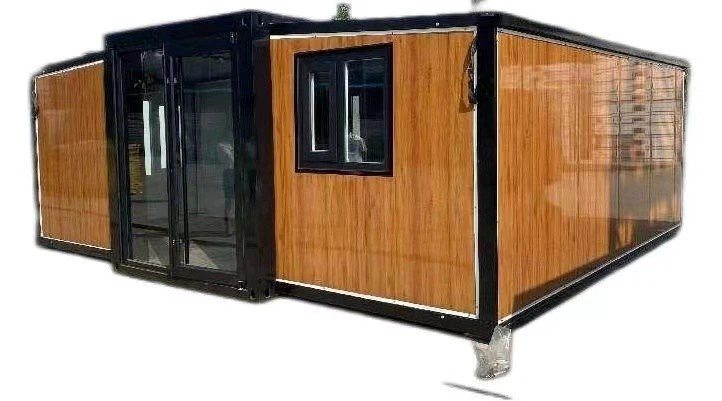

20ft Expandable Thawv Tsev

Cov yam ntxwv yooj yim

Yam khoom: 20ft expandable thawv tsev

Sab nraud loj (mm) 6320 * 5900 * 2480

Internal loj (mm) 6160 * 5560 * 2240

Folding xeev (mm) 2200 * 5900 * 2480

Tag nrho qhov hnyav (kg) 2500kg

Frame Structure

Sab saum toj girder: Thickness 2.5mm Q235B

Hauv qab girder: Thickness 2.5mm Q235B

Sab girder: Thickness 1.5mm Q235B

Nruab nrab kem: Thickness 2.5mm Q235B

Sab phab ntsa: Thickness 1.5mm Q235B

Sab phab ntsa: Thickness 1.5mm Q235B

Hanging taub hau: Thickness 4mm Q235B

Folding pob khawm: 13mm Galvanized pob khawm

Kev tiv thaiv txheej rau ib qho ncej: Electrostatic txau / ncaj qha cov hmoov yas dawb

Nruab nrab txee sab saum toj thiab hauv qab: 80 * 100

Sab saum toj thiab hauv qab ntawm sab txee: 40 * 60 * 1.5 thickness square yeeb nkab

Sab saum toj ntawm Box

Sab nrauv ru tsev: Thickness 0.5mm Galvanized Sheet

Sab hauv celing board: Thickness 831 sab hauv celing board

Phab ntsa

Nruab nrab ru tsev rwb thaiv tsev: Thickness 50mm iav ntoo

Sab phab ntsa, pem hauv ntej thiab nram qab phab ntsa panels: Thickness 50mm iav ntoo galvanized ntawv los yog Thickness 50mm Foam board.

Sab hauv muab faib: Thickness 50mm Foam board.

Sab hauv chav dej: 1700 * 1500

Pem teb: Fireproof iav magnesium pem teb (15mm)

Cov Hluav Taws Xob Hluav Taws Xob: Hluav taws xob thaiv hluav taws xob, kev teeb tsa nruj raws li cov ntaub ntawv pov thawj noo noo, tag nrho cov khoom siv hluav taws xob yuav tsum ua raws li CE daim ntawv pov thawj. Kev sib txuas ua ke raws li kev tsim hluav taws xob tsim hluav taws xob, sab hauv tsev: 2 LED teeb, 2 lub qab nthab teeb, 5 ib lub qhov (socket) 3, ib lub qhov (socket) 1, 10 lub qhov (socket) 3, lub qhov (socket) cua txias 1, 20A los tiv thaiv

Lub hwj chim: 220V, 50HZ

Sab hauv layout

1.Ib chav pw layout

2.Ob chav pw layout

3. Peb chav pw layout

Yog tias cov txheej txheem saum toj no tsis tuaj yeem ua tau raws li koj xav tau, thov hu rau cov neeg siv khoom los kho nws rau koj.

Feature

Lub 20ft Expandable Container House yog ib qho tsim tshwj xeeb tsim qauv, prefabricated, tag nrho ua haujlwm portable tsev Tsim los ntawm 20ft thawv.

Tshawb xyuas qhov no amazing expandable thawv tsev tsim! Siv ib lub thawv 20ft txheem

Thiab nthuav tawm ntawm sab thiab xaus. Qhov no yog ntau tshaj peb npaug ntawm thaj chaw qub

thawv. Lub platform yog lub thawv ntim yooj yim, txhais tau tias cov infrastructure rau kev thauj mus los thiab kev thauj mus los

Kev xa tawm tau nyob rau hauv qhov chaw thiab tuaj yeem xa los ntawm kev tsheb ciav hlau, nkoj thiab tsheb thauj mus rau yuav luag txhua qhov chaw hauv ntiaj teb.

Lub neej ua haujlwm: 20 xyoo.

Ib lub tsev 40HQ tuaj yeem tuav 2 units.

Ntim thiab Shipping

1. Ceev ceev ntau lawm

Feem ntau ntawm cov khoom yog ua los ntawm cov cav tov, thiab cov khoom siv ceev ceev.

2. Tshwj xeeb bolt txuas tsim

1) Kev teeb tsa yooj yim: 2-3 cov neeg ua haujlwm tuaj yeem txhim kho lub tsev.

2) Siv qhov chaw tsawg dua: lub thawv 40HQ tuaj yeem tuav 2 units.

3. Galvanized ncej ntxiv hmoov txheej. Nyuaj xeb.

4. tuaj yeem ua ke rau hauv chav loj.

5. Cov iav loj lossis phab ntsa tuaj yeem muab ntxiv kom nws zoo li niaj hnub.
