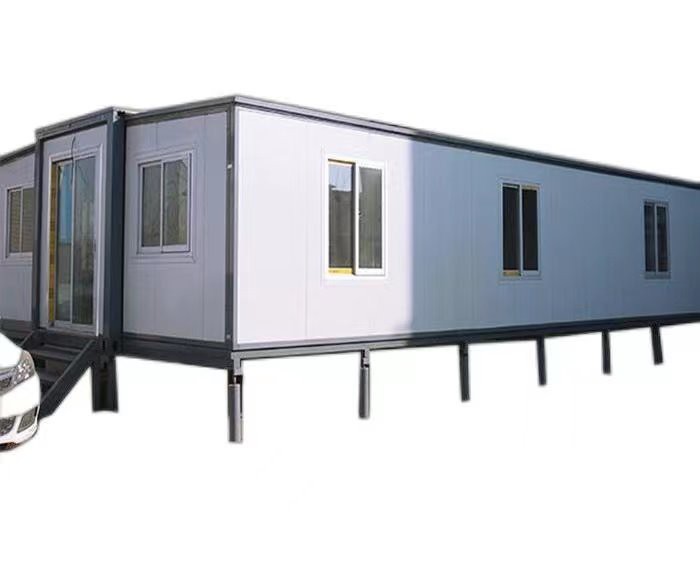

40ft Expandable Thawv Tsev

Cov yam ntxwv yooj yim

Sab nraud qhov ntev (mm)

6300*11800*2480

Internal qhov ntev (mm)

6000*11400*2240

Folding xeev (mm)

2200*11800*2480

Tag nrho qhov hnyav (kg)

7 ton

Frame Structure

Sab saum toj girder

Thickness 2.5mmQ235B

Hauv qab girder:

Thickness 2.5mmQ235B

Sab girder:

Thickness 1.5mmQ235B

Nruab nrab kem:

Thickness 2.5mmQ235B

sidewall ncej:

Thickness 1.5mmQ235B

subframe

Thickness 1.5mmQ235B

dai taub hau

Thickness 4mmQ235B

Folding pob khawm

13mm Galvanized pob khawm

Kev tiv thaiv txheej rau ib qho ncej

electrostatic txau / ncaj qha dawb yas hmoov

Middle txee saum thiab hauv qab:

150*100

Sab saum toj thiab hauv qab ntawm sab txee:

80 * 160 * 1.5hickness square yeeb nkab

Sab saum toj ntawm Box

Sab nrauv ru tsev

Thickness 0.5 hli galvanized ntawv

Sab hauv celing board

Thickness 831 hauv celing board

Phab ntsa

Nruab nrab ru tsev rwb thaiv tsev

T150mm iav ntoo

Sab phab ntsa, pem hauv ntej thiab nram qab phab ntsa panels

Thickness 150mm iav ntoo galvanized ntawv los yog Thickness 150mm Foam board.

Sab hauv partition:

T150mm Ua npuas ncauj Board.

Sab hauv chav dej:

1700*1500
(tuaj yeem kho tau)

Pem teb

Nruab nrab pem teb

Fireproof iav magnesium pem teb (15mm)

Pem teb ntawm ob sab

Xyoob ntoo pem teb

Hluav taws xob System

Kev xa hluav taws xob, kev teeb tsa hauv kev nruj raws li cov ntaub ntawv pov thawj noo noo, tag nrho cov khoom siv hluav taws xob yuav tsum tau ua raws li daim ntawv pov thawj CE. Kev sib txuas ua ke raws li kev tsim hluav taws xob tsim hluav taws xob, sab hauv tsev: 2 LED teeb, 2 lub qab nthab teeb, 5 ib lub qhov (socket) 3, ib lub qhov (socket) 1, 10 lub qhov (socket) 3, lub qhov (socket) cua txias 1, 20A los tiv thaiv
Lub hwj chim: 220V, 50HZ

Qhov rooj ruaj ntseg

2

Qhov rai

4 (920 * 1120 hli)

Kev ruaj ntseg zoo

Ib xyoos
